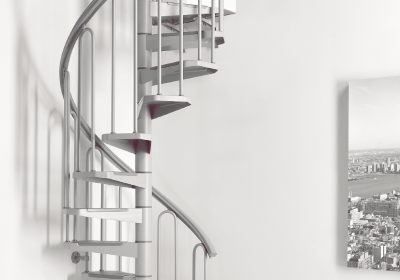

Fontanot ‘Ago’ Spiral Stair Kit

The Fontanot ‘Ago’ Spiral Stair Kit with its 1100mm diameter has been designed to maximize floor space. It is available in a range of height variations with a maximum height of 3290mm achievable – See “Ago Stair Heights” chart below. The standard ‘Ago’ Stair kit is supplied with 11 treads & a landing tread (available in a Cherry or Blond Walnut colour). The spiral’s winding direction clockwise or anti-clockwise may be decided at the point of assembly.

Information
Construction	Manufactued in Steel & Timber (Birch blockboard)
Metal-work Colour Option	Grey (RAL 9006)
Stair Diameter Choice	1100mm
Recommended Opening Size	1100mm Diameter = 1150mm Opening
Floor to Floor Heights	2000mm to 2820mm (Standard Kit) 2821mm to 3290mm (additional Tread Kits required)
No. of Treads (Standard Nice 3 Kit)	11 Treads + 1 Landing Tread
Individual Rise	adjustable from 200mm to 235mm
Handrail Type	Grey PVC
Balustrade Detail	Comprises of 20mm metal balusters topped with a Grey PVC handrail - See 'More Views' Images
Tread Detail	35mm thick Birch Blockboard treads available in a Cherry or Blond Walnut colour - See 'More Views' images
Optional Upper Floor Balustrade Kit	Supplied in a 1200mm length (handrail & balusters to match stair balustrade)

Staircase Heights
Height	No. of Treads	No. of Risers
2000 mm - 2350 mm	9 + 1 Landing Tread	10
2200 mm - 2585 mm	10 + 1 Landing Tread	11
2400 mm - 2820 mm	11 + 1 Landing Tread	12
2600 mm - 3055 mm	12 + 1 Landing Tread	13
2800 mm - 3290 mm	13 + 1 Landing Tread	14
